I needed something to mount my TomTom Urban Rider to my KTM 690 Enduro Modell Year 2015
and I like to build stuff... so I started with this basic piece of sheet metal

It probably fits all newer KTM 690  Enduro / SMC / LC4. The 4 bolts that hold the handlebar have to have a distance of 38,5 mm in driving direction
and 90,45 mm in handle bar direction

This will fit to all the curren TomTom Urban Rider Models...
4 pin connector and 6 pin connector

KTM690 baseplate

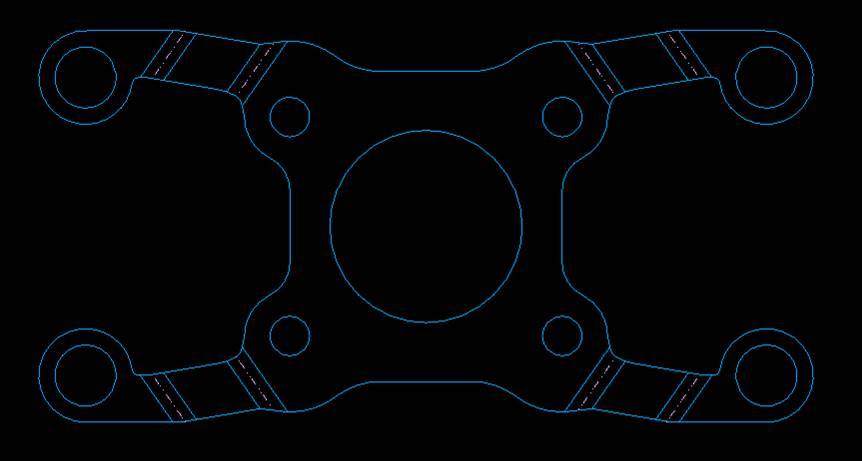

This picture shows how the sheet metal piece needs to be bend...
the bend areas are shown and the mid line of the bend is the pink dotted line

This bending is neede in order to give the screws some distance to be clear from the handlebar

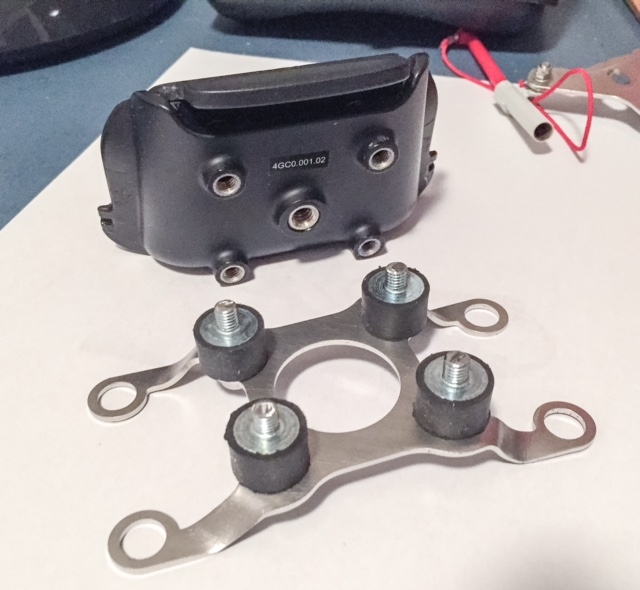

The rubber bumpers insulate the TomTom from vibrations and harsh bumps from sporty riding.
Crash proof. See the testing :-) https://youtu.be/pWznKiG4GHk

The whole thing mounts to the bike with the 4 screws that hold the handlebar

The picture above shows the mounted rubber bumpers.
If you want to mount a different navigation system than the TomTom Urban Rider
you need to build a simple adapter plate.

The picture below shows how the RIMA-Lock is fitted to the KTM Mount.
This lock allows you to leave your bike and your TomTom alone when you go for refreshing drink or an icecream.
This will prevent a quick theft...

How much is it ?

Well... since this is a project that I do for fun, my only real cost factor is my precious time.

The most time consuming effort lies in the shortening of the  thread ends of the rubber bumpers...
they need to be shortened differently on both sides (I need to measure and put mm here)

My price list (to be paid via paypal to  mfp1706@live.de)

Option 1: very basic
KTM690 baseplate, 1,5 mm stainless steel V2A  (flat / without bends )  20 EUR
inluding Postage

Option 2: basic
KTM690 baseplate, 1,5 mm stainless steel V2A  (bend)  30 EUR
inluding Postage

Option 3: basic + basic rubber bumbers
KTM690 baseplate, 1,5 mm stainless steel V2A  (bend)
4 rubber bumpers that you need to shorten yourself... 40 EUR
(including 4 locking nuts)
inluding Postage

Option 4: basic + shortened rubber bumbers
KTM690 baseplate, 1,5 mm stainless steel V2A  (bend)
4 rubber bumbers with shortened ends...  90 EUR
(including 4 locking nuts)
inluding Postage

Orders via e-mail:  rima-lock@jpf.de  (do not forget your adress)

In Germany legal rules apply for online-orders: Widerrufsrecht and I assume something similar exists in other countries in the world...

The RIMA-Lock is 35 EUR... inluding postage... click on this RIMA-Lock link and have a look at it.

A word of advise :  the threads that are inside the TomTom active docking mount are brittle...
when you look closely at the fit of the metal inserts into the plastic you see a fine gap

use crazy glue to put in the gap... that improves the rigidity significantly...

do not use locktite to fix screw that go in there... you will pull out the thread insert
when you try to loosen the srews...

The rubber bumbers are automatically tightened nicely to the active mount
when you screw on the locking nuts... when the nuts are tightended untighten them for 1/8th of a turn so the rubber bumber does not get twisted too much

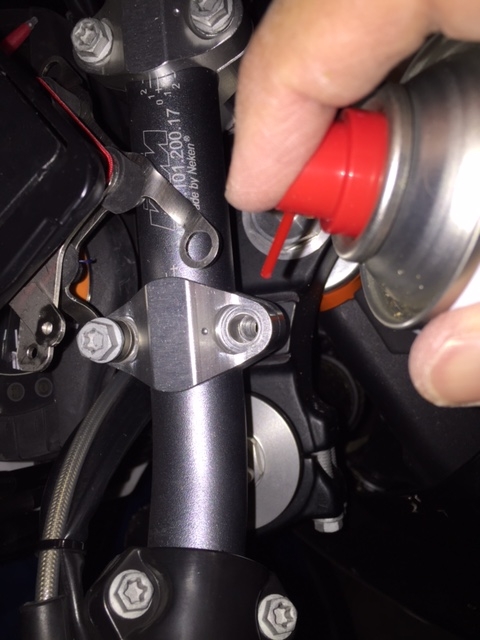

I put some chain grease on the bolts and the top contact surface - see below
Torx T40 needed to unscrew... or cranked ring wrench

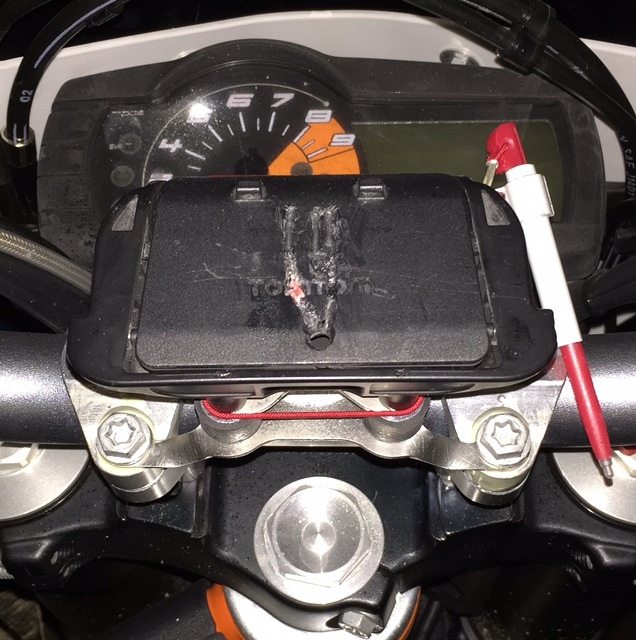

Here you can see how the sheet metal nicely mounts with the 4 bolts...
due to the limited space you need to tighten the bolts with a cranked ring wrench  Metric 10mm SW

These are my proving grounds
